GNSS

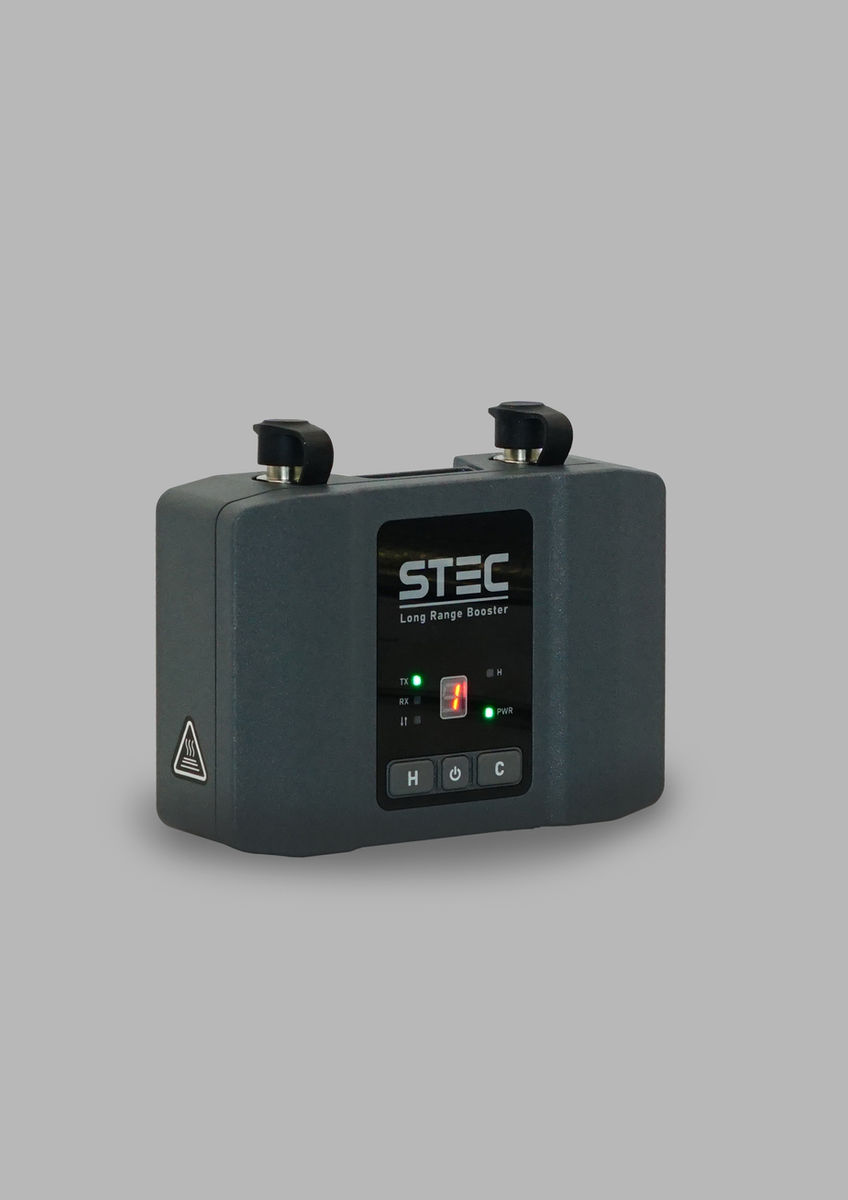

LRB
Palm-size external radio with internal battery, 10–20 km range and wireless connection.
LRB is a compact external radio for GNSS base stations. With 7 W output and STEC's S LINK Ultra protocol it reaches 10–20 km. A 13,600 mAh internal battery gives about 2 hours of operation, and a regular Type-C power bank extends that to around 10 hours, so no heavy car battery is needed. It links to the base receiver over Wi-Fi or Bluetooth, is set up from a web interface, and supports NTRIP through a SIM card.
- Datalink range
- 10–20 km
- Datalink range
- Output
- 7 W
- Output
- Weight
- 720 g
- Weight
- Internal battery
- 13,600 mAh
- Internal battery
Main Capabilities

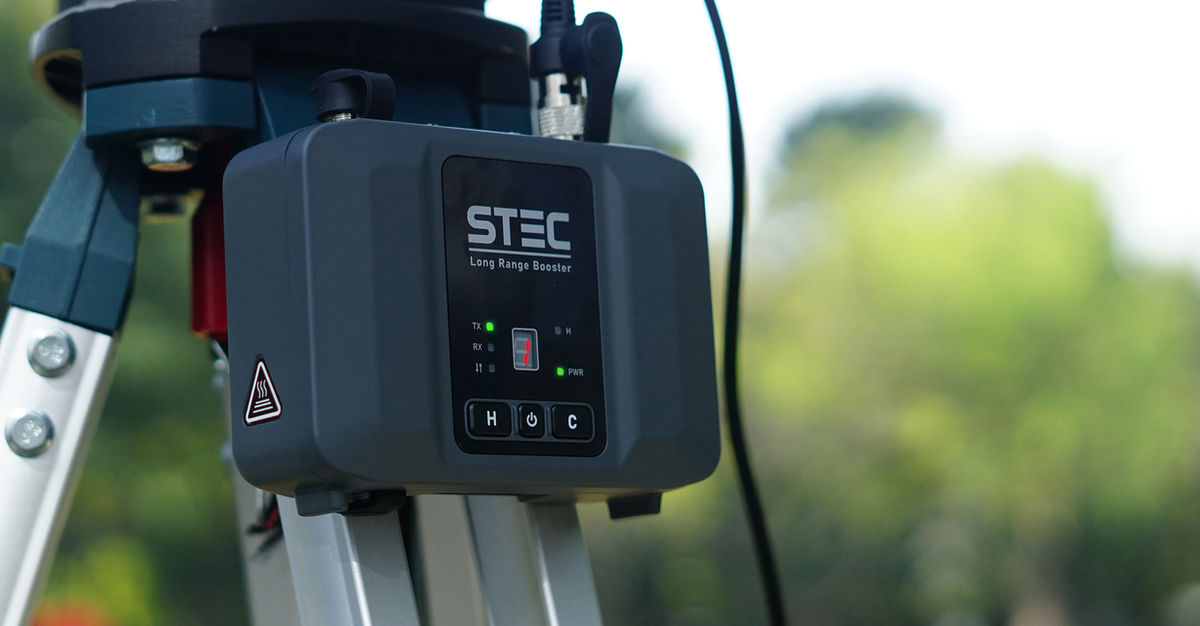

Long-Range Datalink
With only 7 W output, LRB reaches 10–20 km using STEC's S LINK Ultra protocol.
Internal Battery
A 13,600 mAh battery runs it for about 2 hours, and a Type-C power bank with fast charge extends that to around 10 hours, with no heavy car battery needed.
Truly Wireless
Wi-Fi and Bluetooth link it to the base receiver, and a SIM card adds network options for NTRIP users.
Web UI
Configure every setting over Wi-Fi from a browser on your PC or phone.
Key Features
- Palm-size, only 720 g
- 7 W output with S LINK Ultra protocol
- Internal battery, extendable with a Type-C power bank
- Wi-Fi and Bluetooth link to the base receiver
- Web UI configuration from PC or phone
- SIM card for network (NTRIP) use
Specifications
| Type | External Radio |
| Output Power | 7 W |
| Range | 10–20 km (S LINK Ultra) |
| Weight | 720 g |
| Width | 128 mm |
| Internal Battery | 13,600 mAh, about 2 h |
| External Power | Type-C power bank, up to about 10 h |
| Connection | Wi-Fi, Bluetooth, SIM card |
| Configuration | Web UI |
Applications
