GNSS

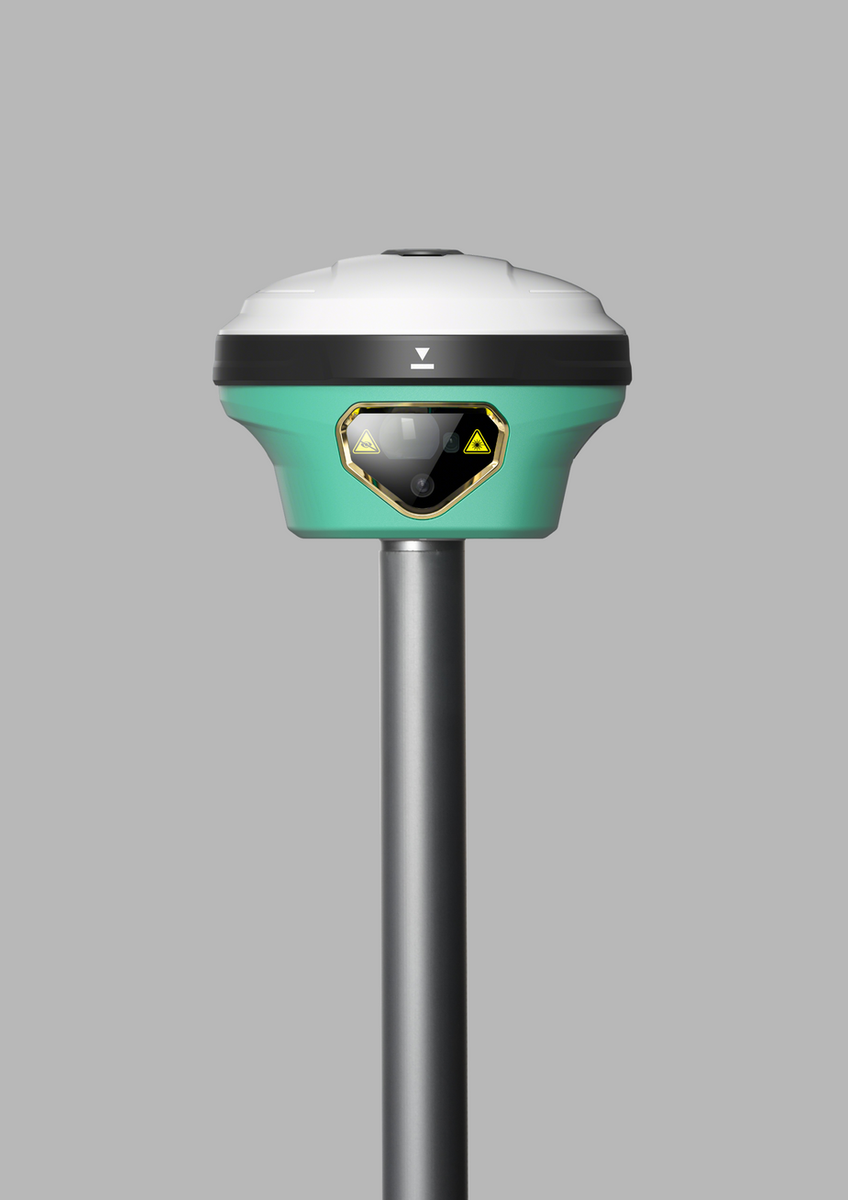

SDi Pro

Next-generation Laser X Visual GNSS receiver: longer range, faster initialisation and clearer cameras.

SDi Pro builds on SDi with a red laser that stays precise over longer distances, total-station-style Automatic Gain Control, a sharper imaging sensor with night vision, and a stronger 2 W internal radio. It achieves 3 cm positioning accuracy within 20 m and measures out to a maximum of 150–200 m.

Accuracy within 20 m: 3 cm; Accuracy within 20 m
Max. distance range: 150–200 m; Max. distance range
Internal radio: 2 W; Internal radio
Water & dust proof: IP68; Water & dust proof

Request a Quote Register Product

Download Brochure (PDF) →Contact Us →

Main Capabilities

Red Laser

A shorter wavelength than green laser keeps measurements more precise over longer distances, out to 150–200 m.

AGC

Automatic Gain Control, inherited from total stations, turns reflections that are too weak or too strong into accurate distance results.

Ultimate Imaging Sensor

A 1920 × 1080 pixel array with a 1/2.8" optical format and night vision gives clearer camera views for targeting and AR stakeout.

fusionAR Gen 2

The front camera shows the direction and distance to the point, then hands over to the bottom camera for precise guidance as you get close. One click starts it.

IP68

Supreme water and dust protection for work in harsh field conditions.

Key Features

Red laser for precision at longer distances
Automatic Gain Control inherited from total stations
1920 × 1080 imaging sensor with night vision
fusionAR Gen 2 dual-camera AR stakeout
2 W internal radio with anti-interference antenna
IP68 water and dust proof

Specifications

Positioning Accuracy	3 cm within 20 m
Distance Range	150–200 m (max.)
Laser	Red laser
Gain Control	Automatic Gain Control (AGC)
Imaging Sensor	1920 × 1080, 1/2.8" optical format
Night Vision	Yes
Internal Radio	2 W output, about 20% longer working range
AR Stakeout	fusionAR Generation 2
Protection	IP68
