GNSS

SE Lite

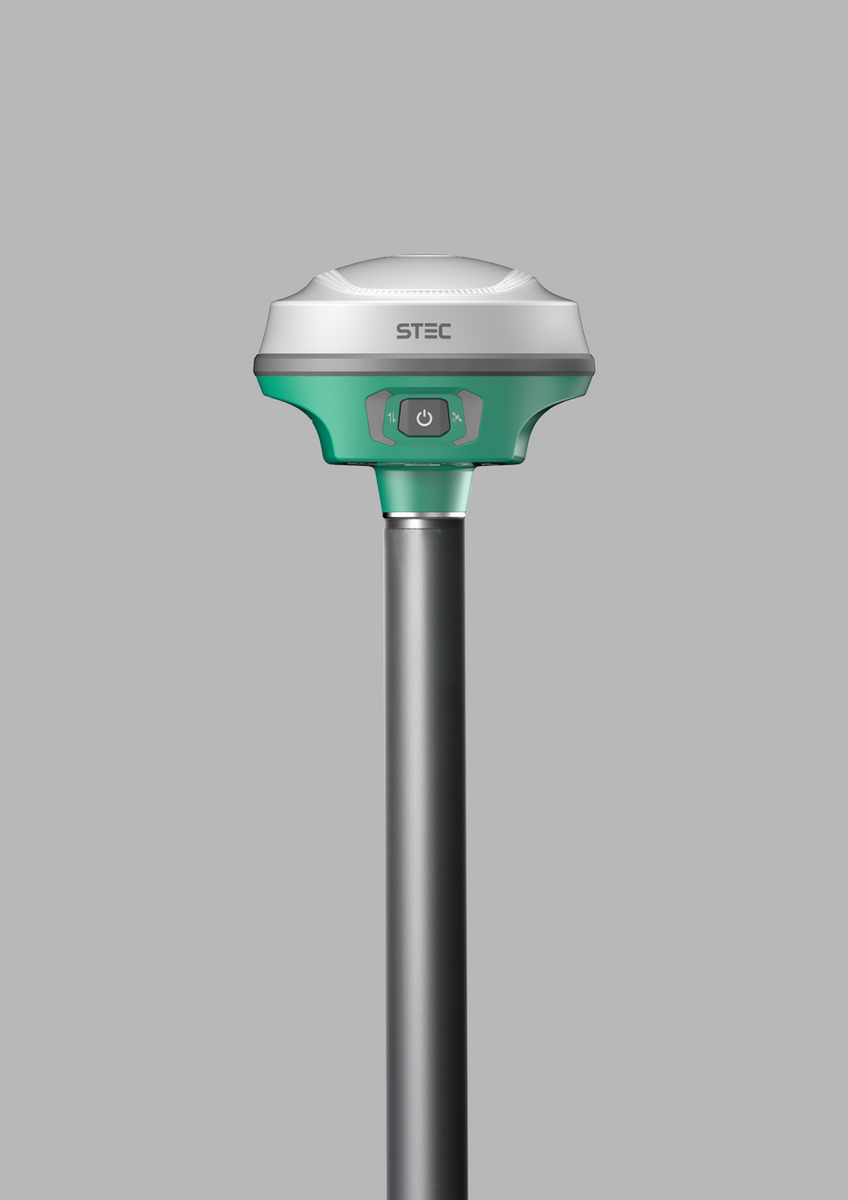

Apple-sized GNSS receiver with 1,408 channels, the ZENITH algorithm and EZtilt.

SE Lite delivers full GNSS performance in a body only 108 mm wide and 82 mm high. The ZENITH algorithm tracks all constellations with fast fixing even under tree cover or beside tall buildings, and checks each coordinate twice for accuracy. An upward-facing radio antenna and the 2 W S-Link radio give a datalink of up to 15 km.

Channels: 1,408; Channels
Frequencies: 21; Frequencies
RTK accuracy: 8 + 1 mm; RTK accuracy
Datalink range: 15 km; Datalink range

Request a Quote Register Product

Download Datasheet (PDF) →Contact Us →

Main Capabilities

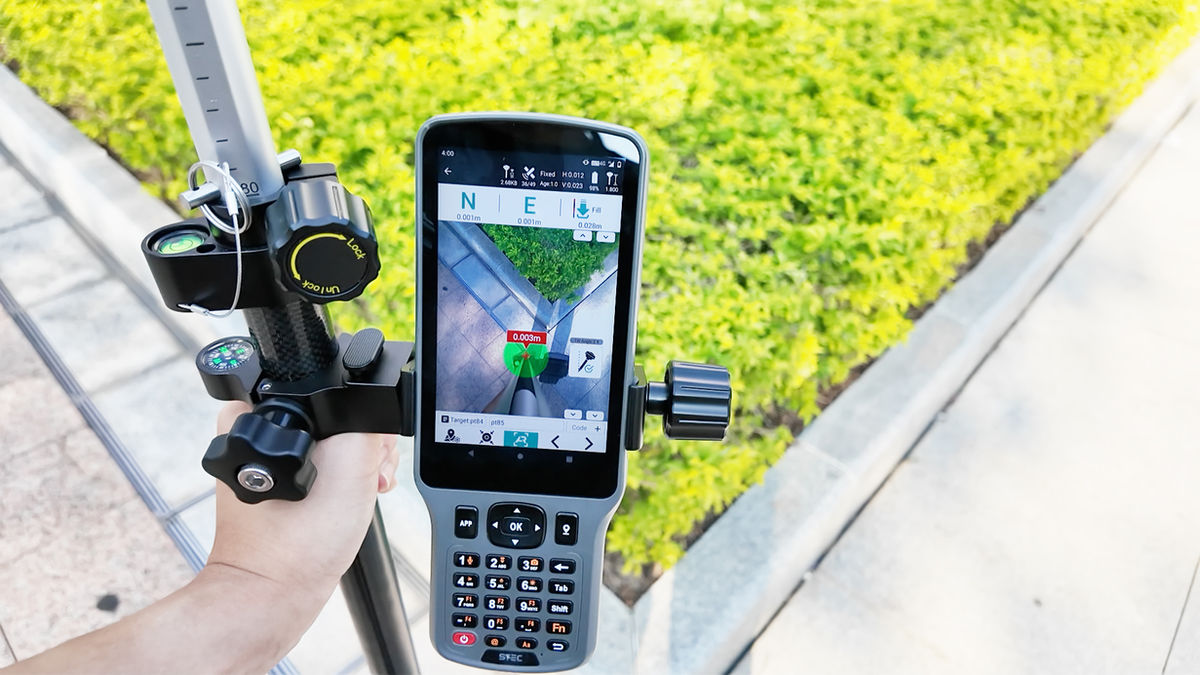

AR Stakeout

The controller camera gives the general direction, then hands over to the camera under the receiver for precise guidance in the last few steps.

ZENITH Algorithm

Tracks a large number of signals from all constellations and fixes quickly under thick tree cover or next to tall buildings, checking each coordinate twice.

EZtilt

No calibration or initialisation: seconds after fixing, tip the pole to the point at up to 60° and collect.

Upward Radio Antenna

A smarter upward-facing antenna gives better Rx/Tx performance and range, with fast plug-in installation. The 2 W S-Link radio reaches up to 15 km.

Key Features

Apple-sized: 108 mm wide, 82 mm high
ZENITH algorithm for fast, reliable fixes
AR stakeout with controller and receiver cameras
Upward radio antenna with fast-plug installation
S-Link 2 W datalink up to 15 km
EZtilt up to 60°, no calibration needed

Specifications

Channels	1,408
Frequencies	21
RTK Accuracy	8 + 1 mm
Size	108 mm (W) × 82 mm (H)
Positioning Engine	ZENITH algorithm
Radio	S-Link, 2 W output, up to 15 km
Tilt Survey	EZtilt, up to 60°
