GNSS

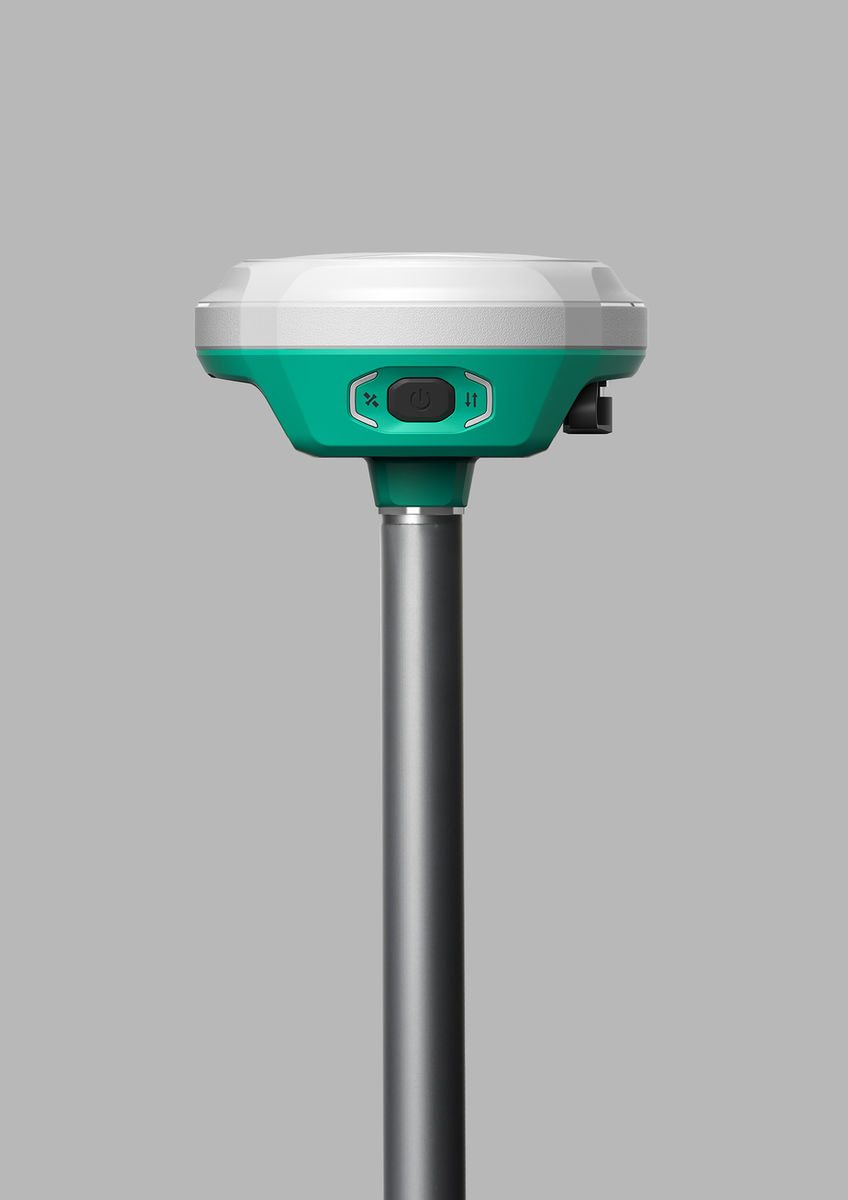

SV1
GNSS receiver built for AR stakeout, with 1,408 channels and IP68 protection.
SmartViewer SV1 is designed around AR stakeout: cameras on the controller and beneath the receiver hand guidance over to each other as you approach a point. It tracks all constellations with the ZENITH algorithm, tilts up to 60° with EZtilt, and supports SPOS, STEC's PPP correction service delivered by L-band satellite, for remote sites where no base station or internet correction is available.
- Channels
- 1,408
- Channels
- Frequencies
- 21
- Frequencies
- Weight
- 740 g
- Weight
- Water & dust proof
- IP68
- Water & dust proof
Main Capabilities
AR Stakeout
The controller shows the general direction from a distance, then switches to the camera beneath the receiver for precise guidance near the point.
SPOS
STEC Positioning Service delivers PPP corrections from L-band satellites, so one rover can reach high accuracy in deserts, mountains, jungles or at sea.
EZtilt
Collect points at any pose within 60° seconds after fixing, with no calibration or initialisation.
Key Features
- AR stakeout with controller and receiver cameras
- ZENITH algorithm for fast fixing
- EZtilt up to 60°, no calibration needed
- 2 W UHF Rx/Tx radio, up to 15 km
- SPOS satellite-delivered PPP corrections
- Magnesium alloy body, IP68
Specifications
| Channels | 1,408 |
| Frequencies | 21 |
| RTK Accuracy | 8 + 1 mm |
| Dimensions | 128 × 74 mm |
| Weight | 740 g |
| Body | Magnesium alloy |
| Interfaces | Type-C USB, SIM card slot, radio antenna port |
| Radio | 2 W UHF Rx/Tx, S-Link, up to 15 km |
| Correction Service | SPOS (BeiDou PPP, Galileo HAS PPP via L-band) |
| Protection | IP68 (1 m water for 1 hour, powered on) |
