Total Station
AXIS 1

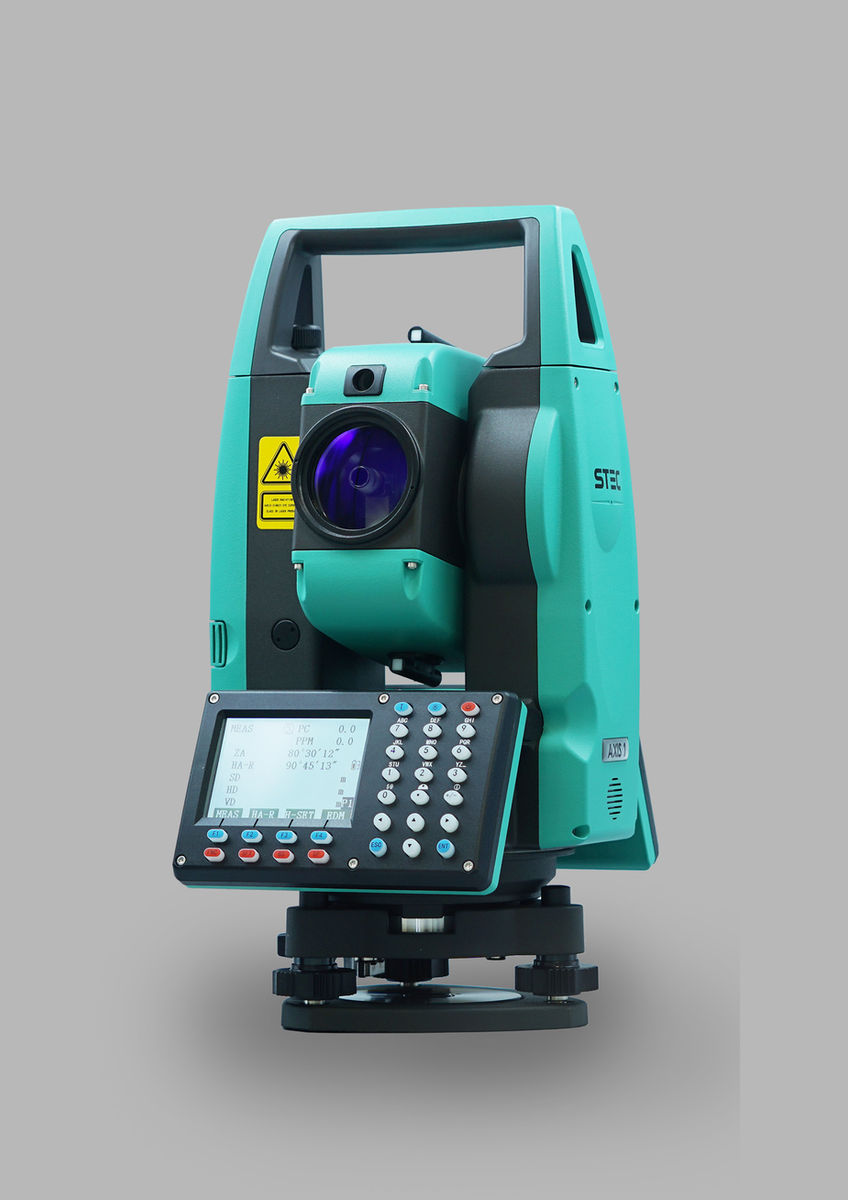

Manual total station with 2" accuracy, 1500 m non-prism range and a 16-hour battery.
AXIS 1 combines a powerful application package with an intuitive workflow on a large, high-resolution 8-line display and more than 16 hours of battery life, meaning more information, less fatigue and fewer mistakes on site. Its fast EDM measures in 0.3 s with 1500 m non-prism range.
- Angle accuracy
- 2"
- Angle accuracy
- Distance accuracy
- 2+2 ppm
- Distance accuracy
- Non-prism range
- 1500 m
- Non-prism range
- Working time
- 16 h
- Working time
Main Capabilities

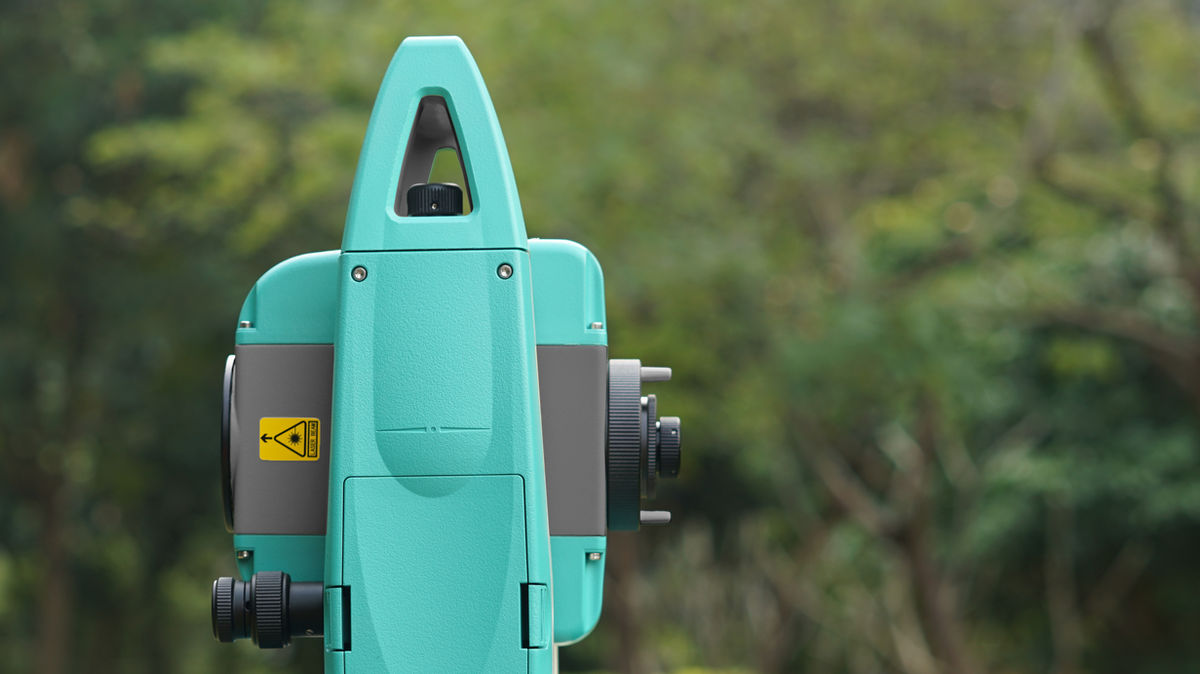

Ultra-Fast, Advanced EDM
2" angle accuracy, 2 mm + 2 ppm distance accuracy and 1500 m non-prism range, with each measurement in 0.3 s.

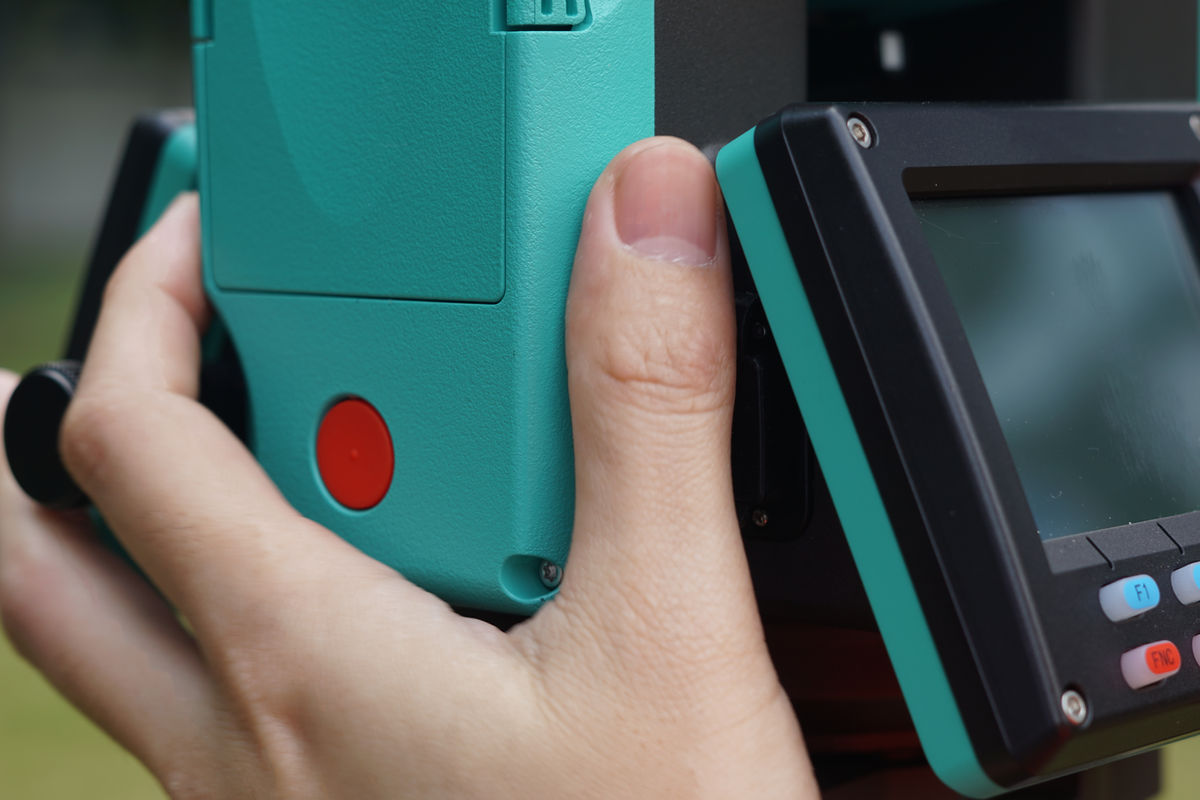

Quick-Measure Button
Take a series of measurements without taking your eye off the telescope, even with gloves on.

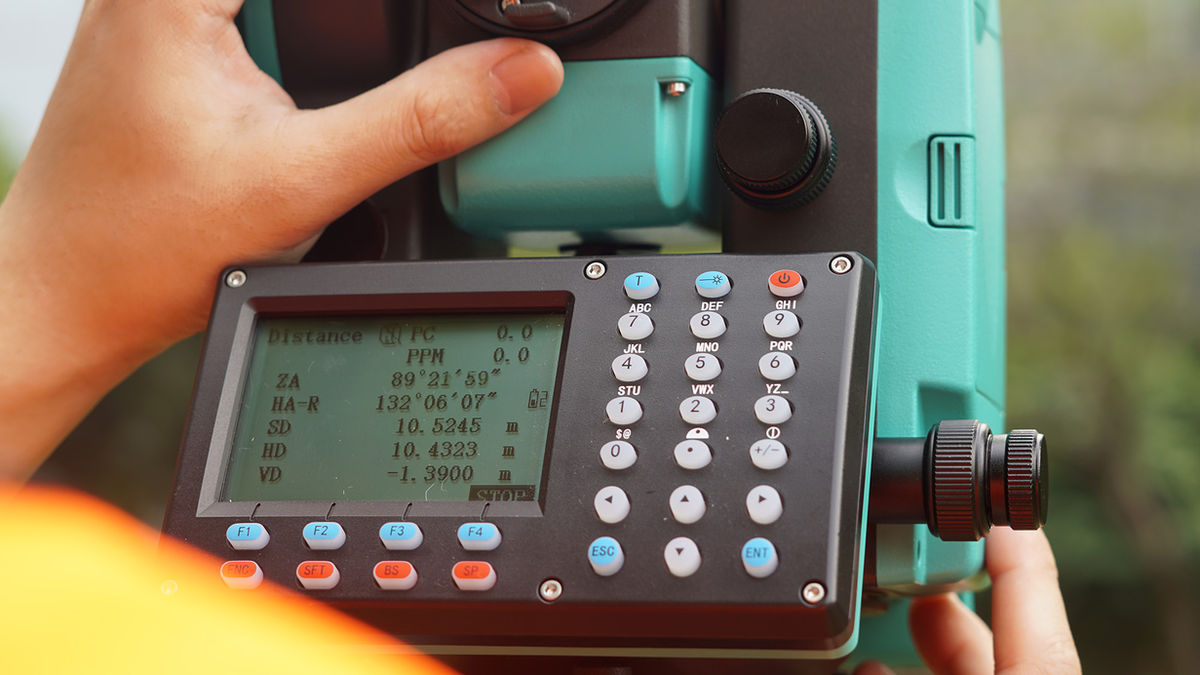

Larger Screen, More Information
A clear, sharp 3.1-inch LCD shows 8 lines of information, with user keys and shortcuts for faster navigation.
Guide Light
A highly visible guide light makes stakeout faster on site.
Practical Onboard Program
Stakeout arc, angle offset, point projection, roads and more, in a small and sleek design.
Key Features
- 2" angle and 2 mm + 2 ppm distance accuracy
- 1500 m non-prism range
- 0.3 s measuring speed
- Guide light for easier stakeout
- Quick-measure button
- 3.1-inch LCD with 8-line display
- Stakeout arc, angle offset, point projection and roads programs
Specifications
| Type | Manual Total Station |
| Angle Accuracy | 2" |
| Distance Accuracy | 2 mm + 2 ppm |
| Non-prism Range | 1500 m |
| Measuring Speed | 0.3 s |
| Display | 3.1" LCD, 8 lines |
| Working Time | 16+ hours |
| Data Transfer | USB |
Applications
