Total Station

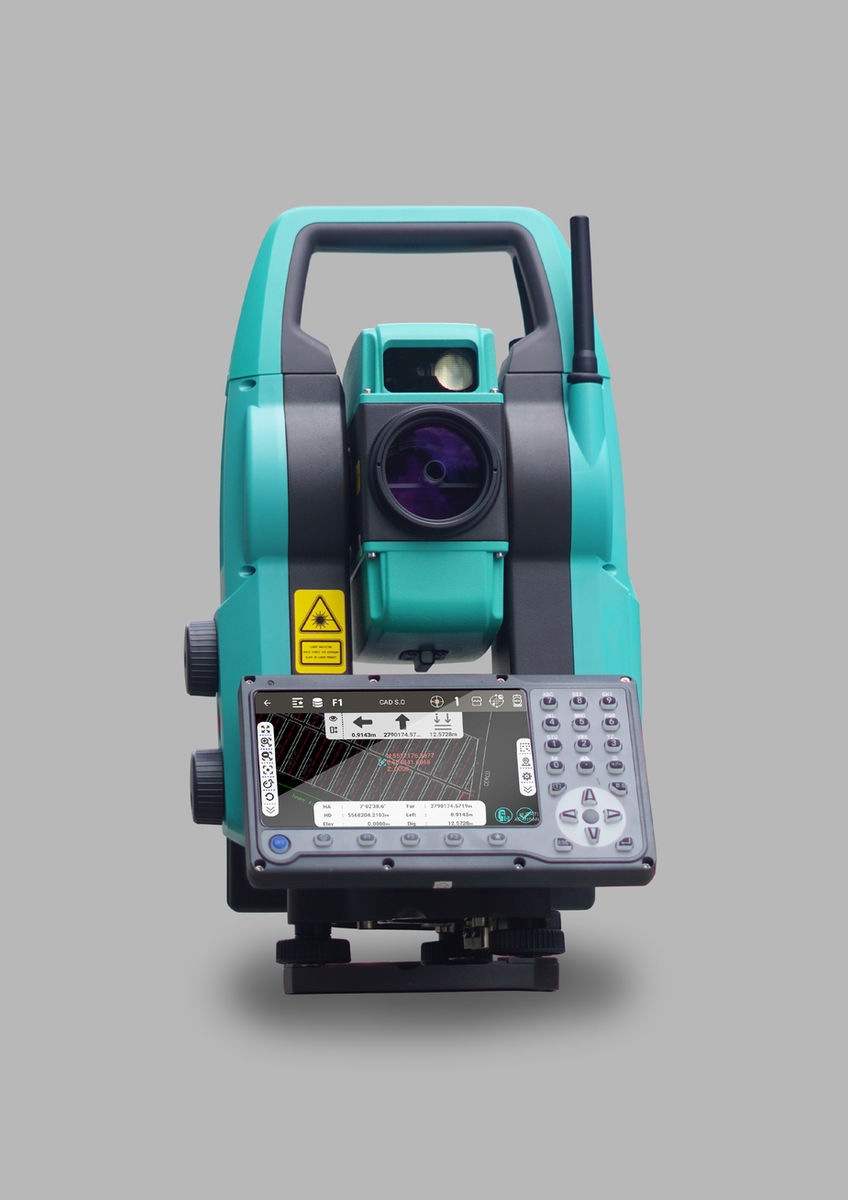

AXIS SP

Compact robotic total station with 1"/2" accuracy, xTrak prism lock and 600 m long-range Bluetooth.

AXIS SP is a smaller, lighter robotic total station that one person can carry and set up, even on mountains or in fields. Torque-Drive 2.0 motors turn it at up to 180°/s, it recognises prisms out to 1000 m and searches for them within 300 m, and xTrak keeps it locked on the prism even when trees or vehicles briefly block the view.

Angle accuracy: 1"/2"; Angle accuracy
Distance accuracy: 1+1 ppm; Distance accuracy
Prism recognition: 1000 m; Prism recognition
Rotation speed: 180°/s; Rotation speed

Request a Quote Register Product

Download Brochure (PDF) →Contact Us →

Main Capabilities

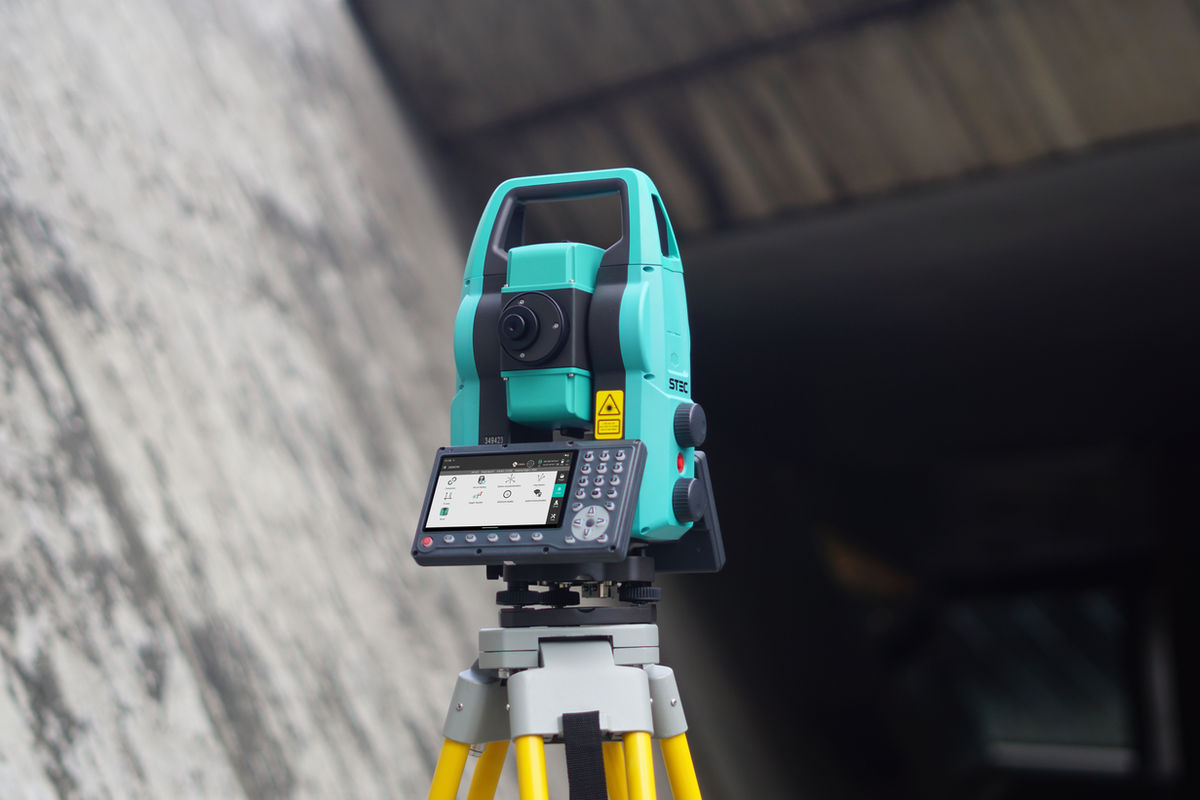

Torque-Drive 2.0

A new low-power, lightweight motor gives strong drive and stability while cutting the instrument's weight. It rotates at up to 180°/s.

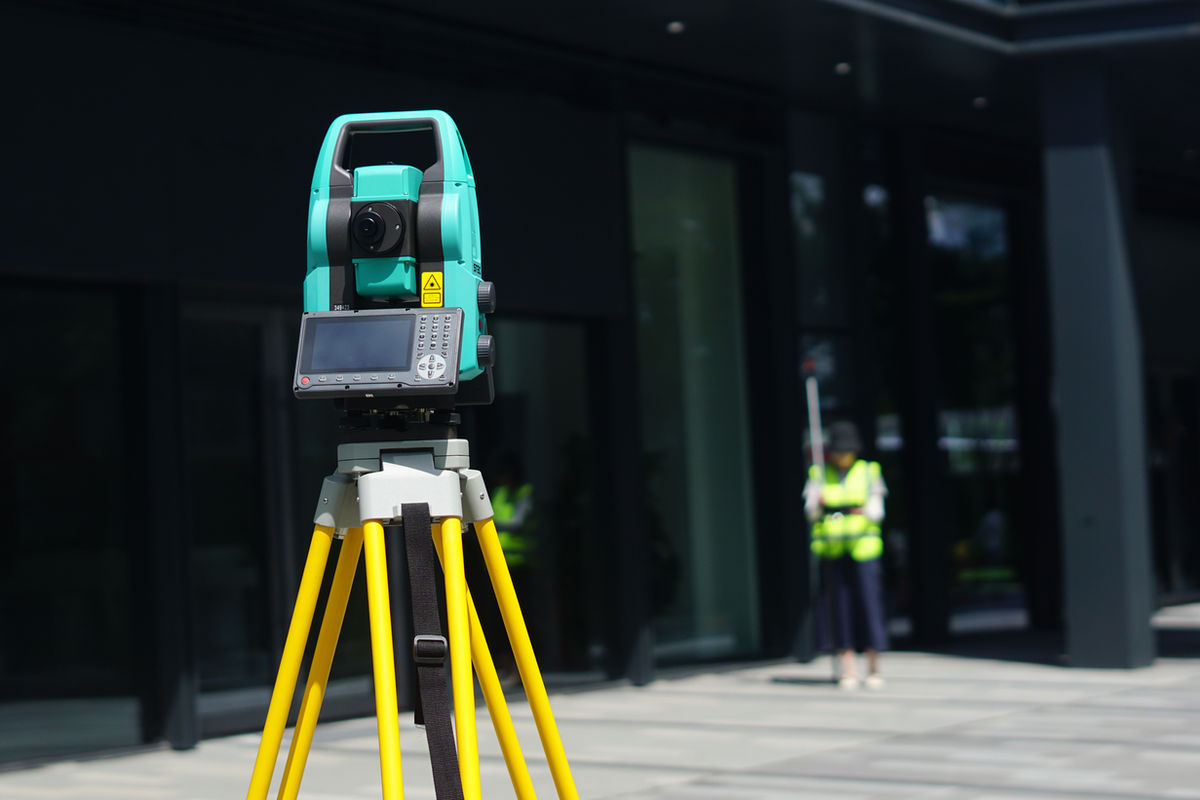

Prism Recognition & Search

Recognises and aims at the prism within 1000 m, and searches 360° horizontally and 18° vertically within 300 m, with no manual aiming needed, even with several prisms or uneven terrain.

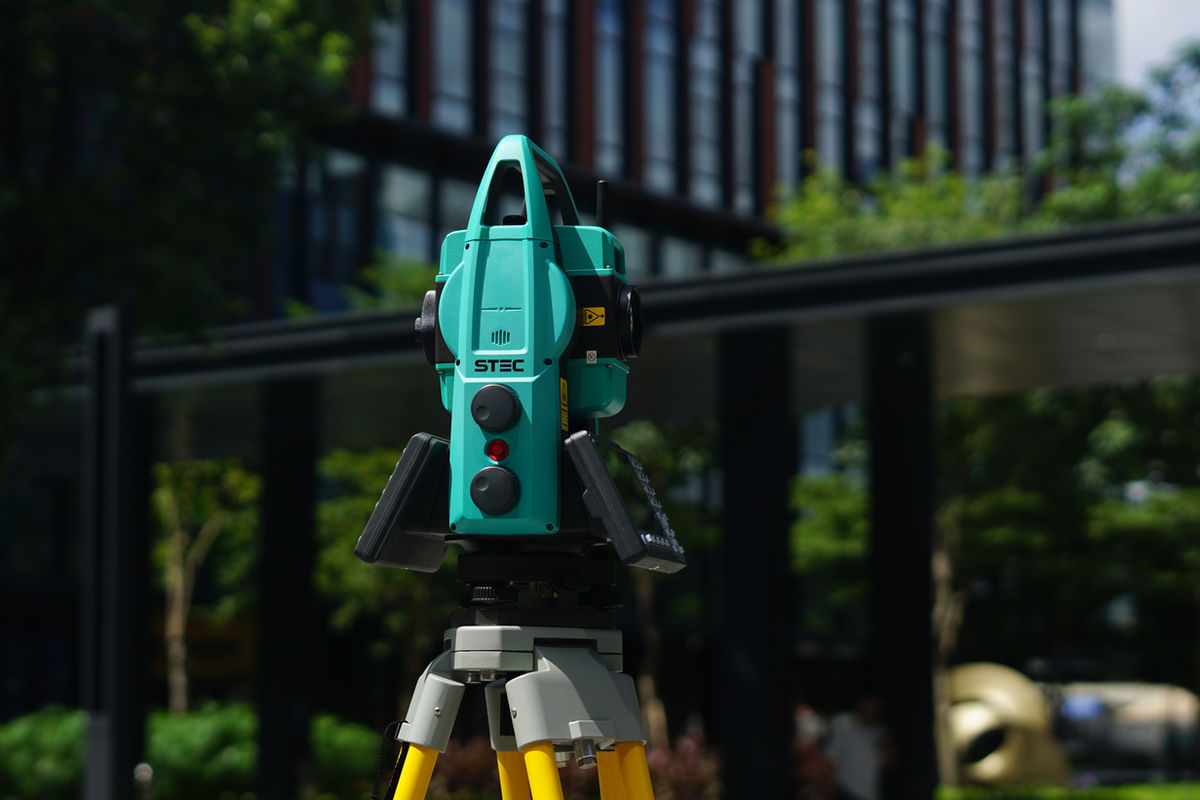

xTrak Prism Lock

Keeps its eye on the prism even when it is briefly blocked by trees or cars, tracking at 20°/s.

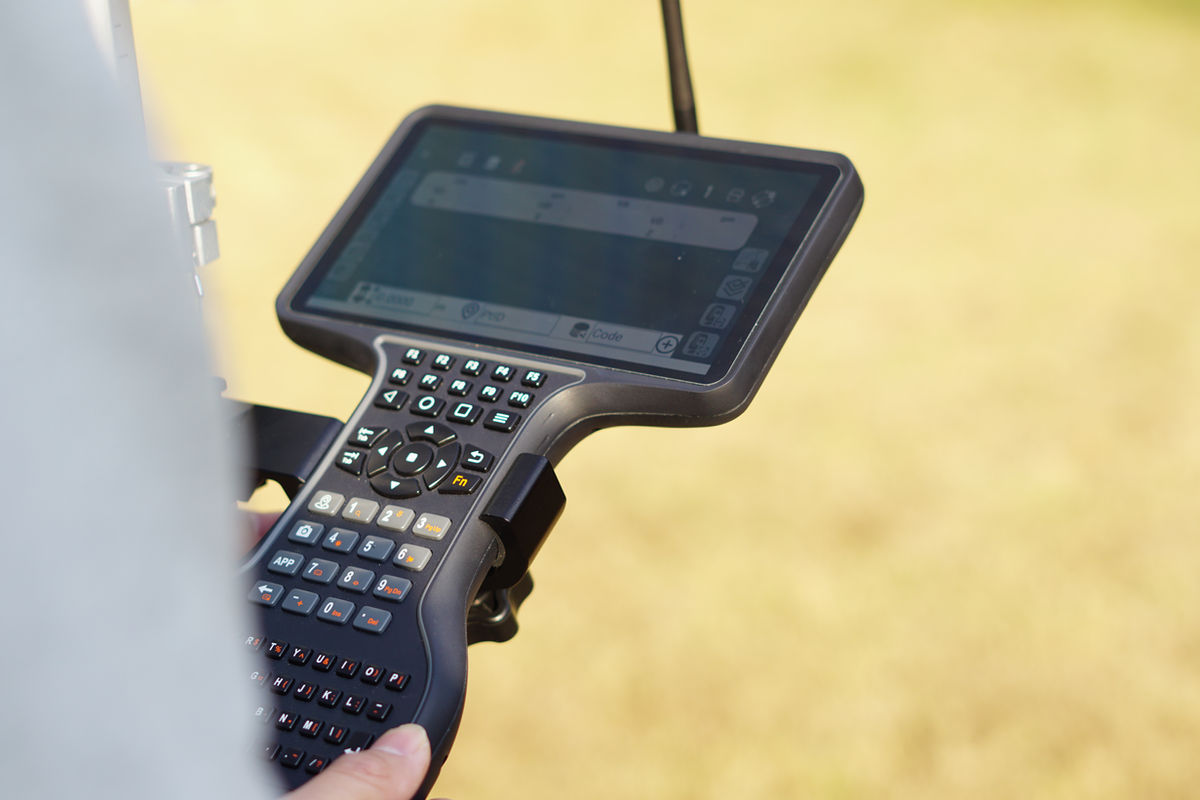

One-Man Solution

600 m long-range Bluetooth lets a single surveyor run the job, and the compact instrument is easy to carry and set up even in mountains or fields, reducing labour cost and strain.

Key Features

Compact, lightweight one-person design
Torque-Drive 2.0 motorisation
1000 m prism recognition, 300 m prism search
xTrak prism lock, 20°/s tracking
5-inch touch screen with full keypad
600 m long-range Bluetooth remote control
Bluetooth, WLAN and SIM (WAN) connectivity

Specifications

Type	Robotic Total Station
Angle Accuracy	1" / 2"
Distance Accuracy	1 mm + 1 ppm
Rotation Speed	Up to 180°/s (Torque-Drive 2.0)
Prism Recognition	1000 m
Prism Search	300 m (360° H, 18° V)
Tracking Speed	20°/s (xTrak)
Display	5" touch screen + full keypad
Remote Control	600 m long-range Bluetooth
Connectivity	Bluetooth, WLAN, WAN (SIM card)
