Total Station
SK 2
Manual total station for construction with 2" accuracy and an 8-line display.
SK 2 gives builders a practical onboard program, an easy-to-read screen and an intuitive workflow. Its long-range EDM measures in 0.3 s with 1500 m non-prism range, a red and yellow guide light makes stakeout easier, and the battery lasts 16 hours.
- Angle accuracy
- 2"
- Angle accuracy
- Distance accuracy
- 2+2 ppm
- Distance accuracy
- Non-prism range
- 1500 m
- Non-prism range
- Working time
- 16 h
- Working time
Main Capabilities

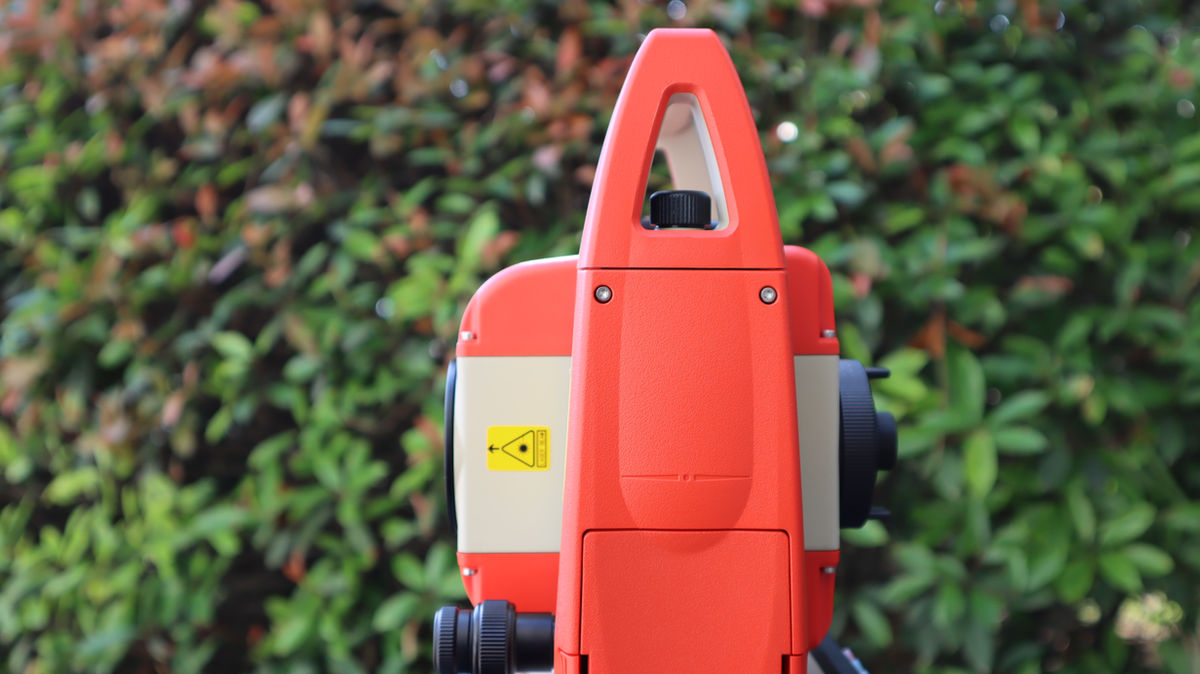

Long-Range EDM
2" angle accuracy, 2 mm + 2 ppm distance accuracy and 1500 m non-prism range.

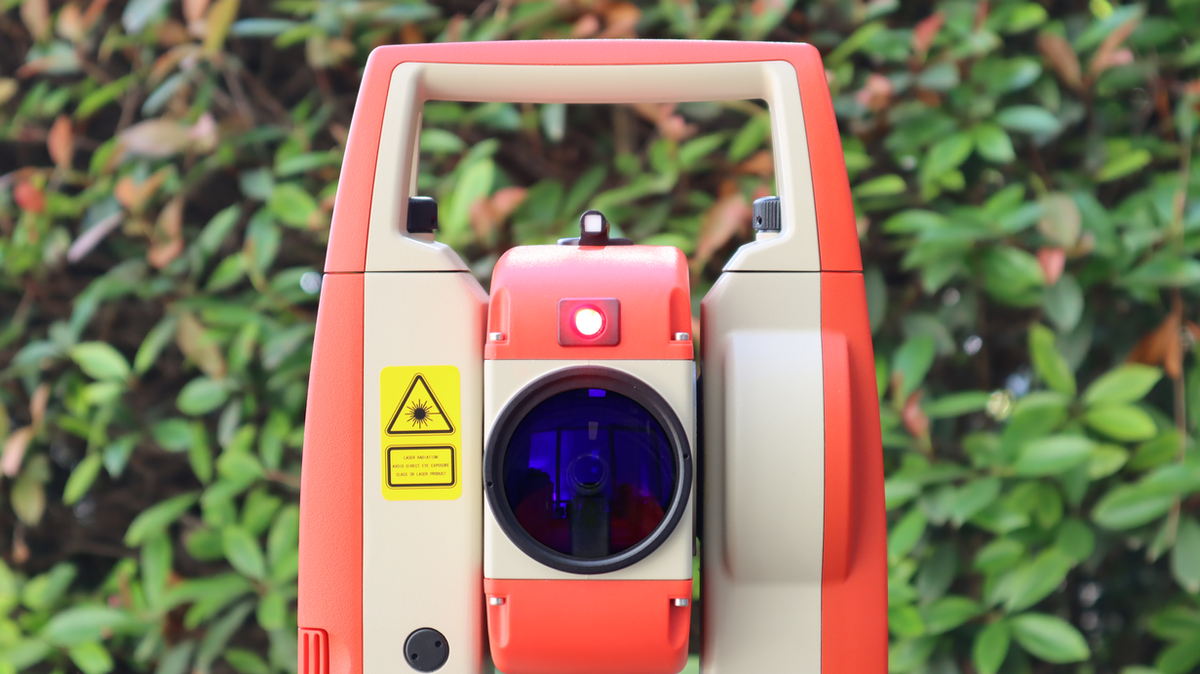

Guide Light
A red and yellow guide light that is highly visible for stakeout.
Quick-Measure Button
Measure the target with one simple button press.

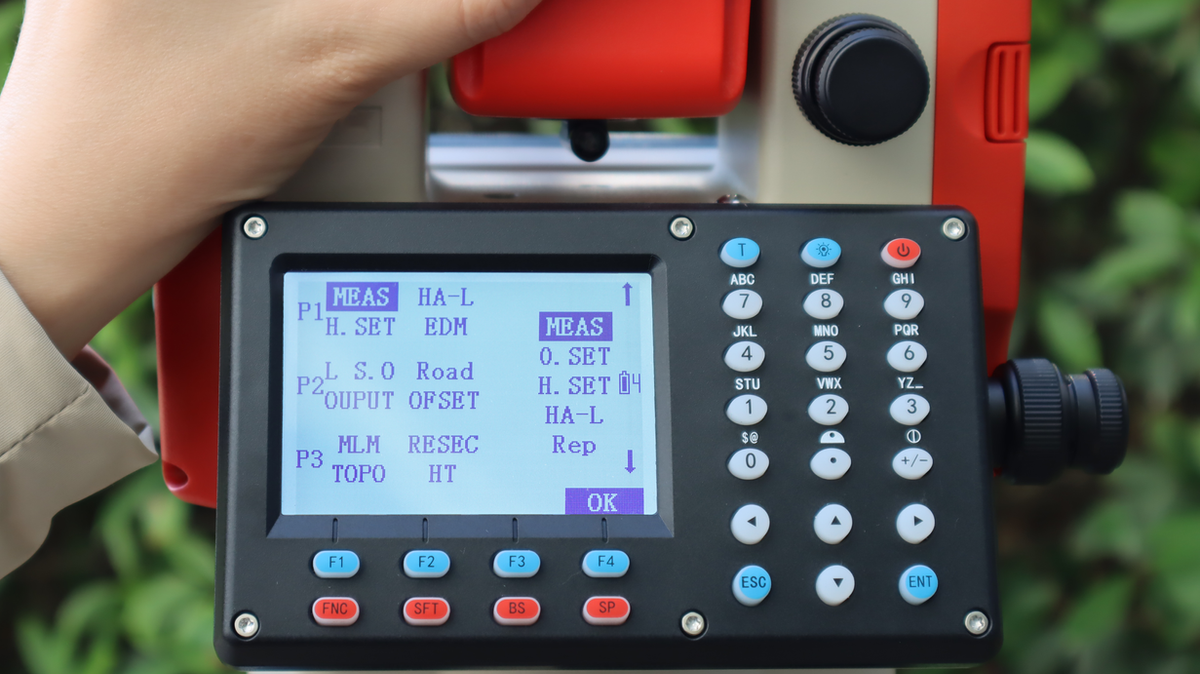

More Information, Fewer Mistakes
A clear 3.1-inch LCD with 8 lines, user keys and shortcuts, and function keys you can allocate as you need.
Practical Onboard Program
Stakeout arc, angle offset, point projection, roads and more.
Key Features
- 2" angle and 2 mm + 2 ppm distance accuracy
- 1500 m non-prism range
- Red and yellow guide light
- Quick-measure button
- 3.1-inch LCD with 8-line display
- Stakeout arc, angle offset, point projection and roads programs
Specifications
| Type | Manual Total Station |
| Angle Accuracy | 2" |
| Distance Accuracy | 2 mm + 2 ppm |
| Non-prism Range | 1500 m |
| Measuring Speed | 0.3 s |
| Tilt Compensation | 4' |
| Display | 3.1" LCD, 8 lines |
| Working Time | 16 hours |
