Optics
DLS-03
Digital level with 0.3mm height accuracy, color touch screen, Bluetooth.
DLS-03 achieves class-leading 0.3 mm height accuracy with an invar staff, helped by magnetic damping for stable, efficient readings. A high-resolution colour touch screen with an onboard quick guide, bubbles on both sides and a "shark-fin" handle for easier aiming make it comfortable to use on any site.
- Height accuracy
- 0.3 mm
- Height accuracy
- Distance range
- 110 m
- Distance range
- Magnification
- 32×
- Magnification
- Compensation range
- 12'
- Compensation range
Main Capabilities

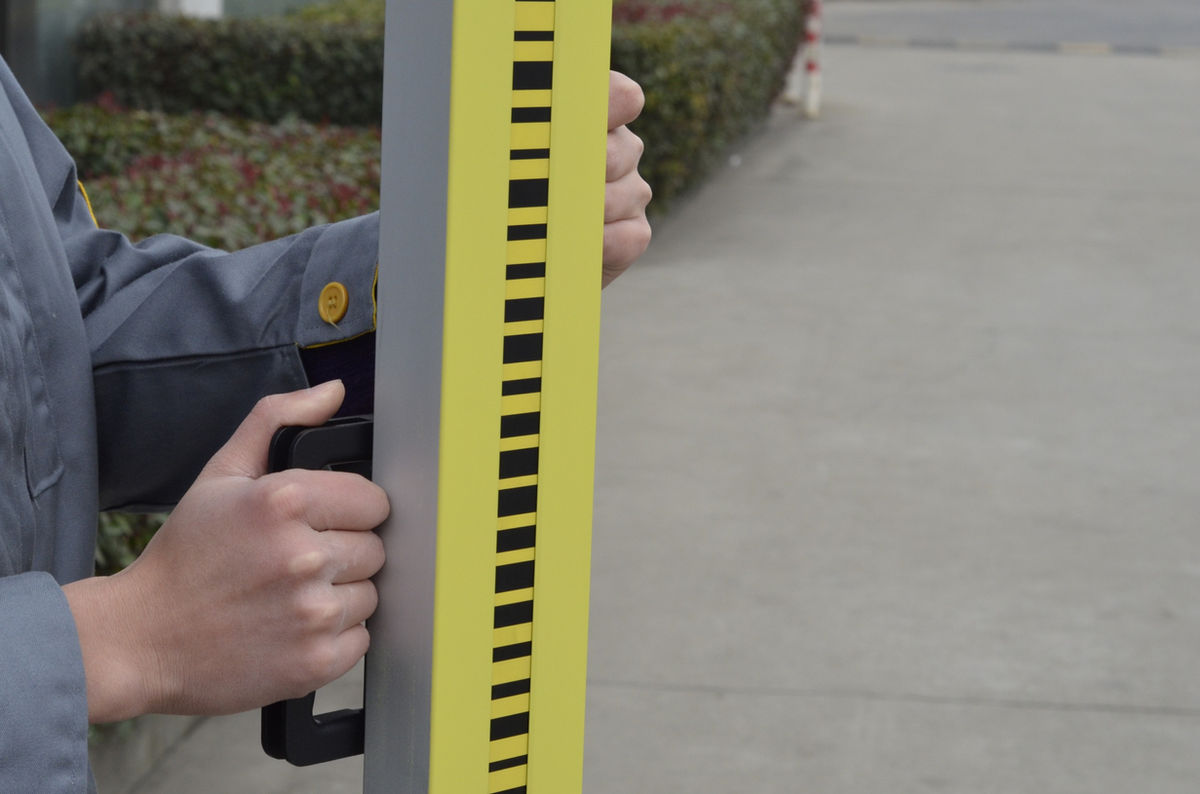

0.3 mm with Invar Staff
Class-leading magnetic damping lets DLS-03 reach 0.3 mm accuracy with stability and efficiency.

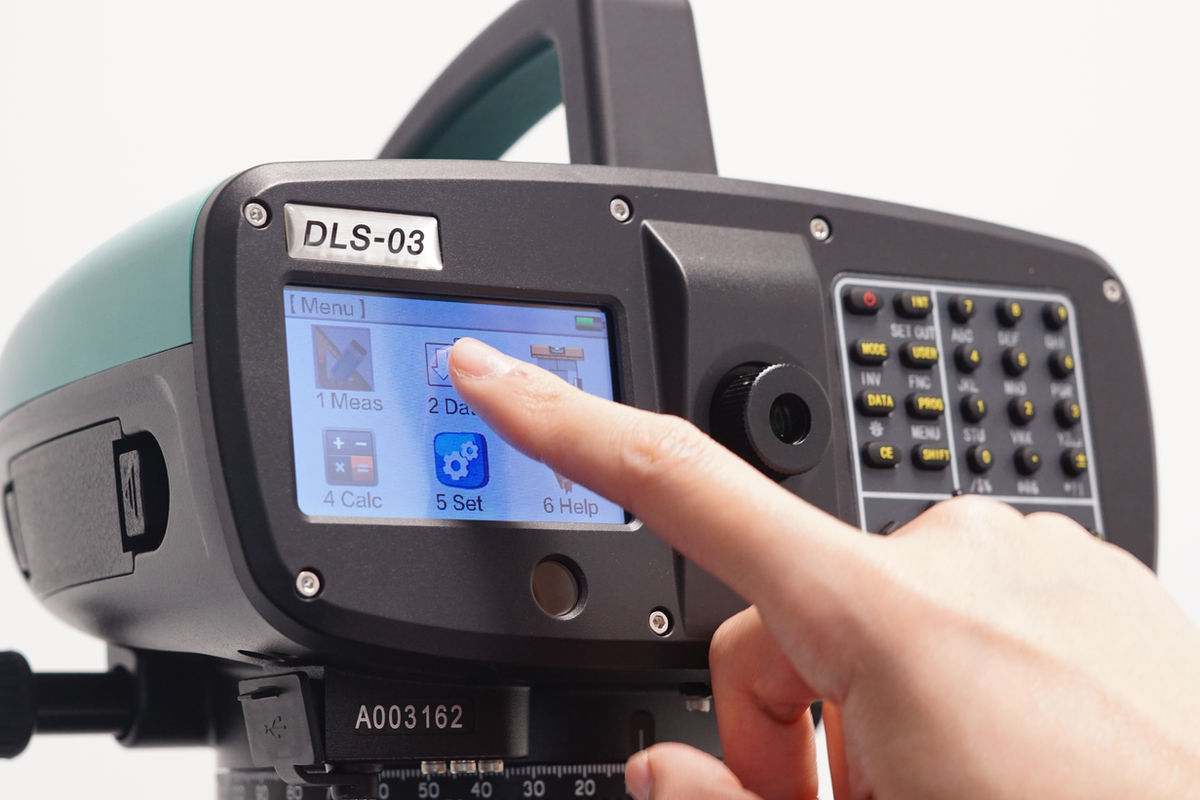

Colour Touch Display
A high-resolution colour touch screen with a quick guide onboard.

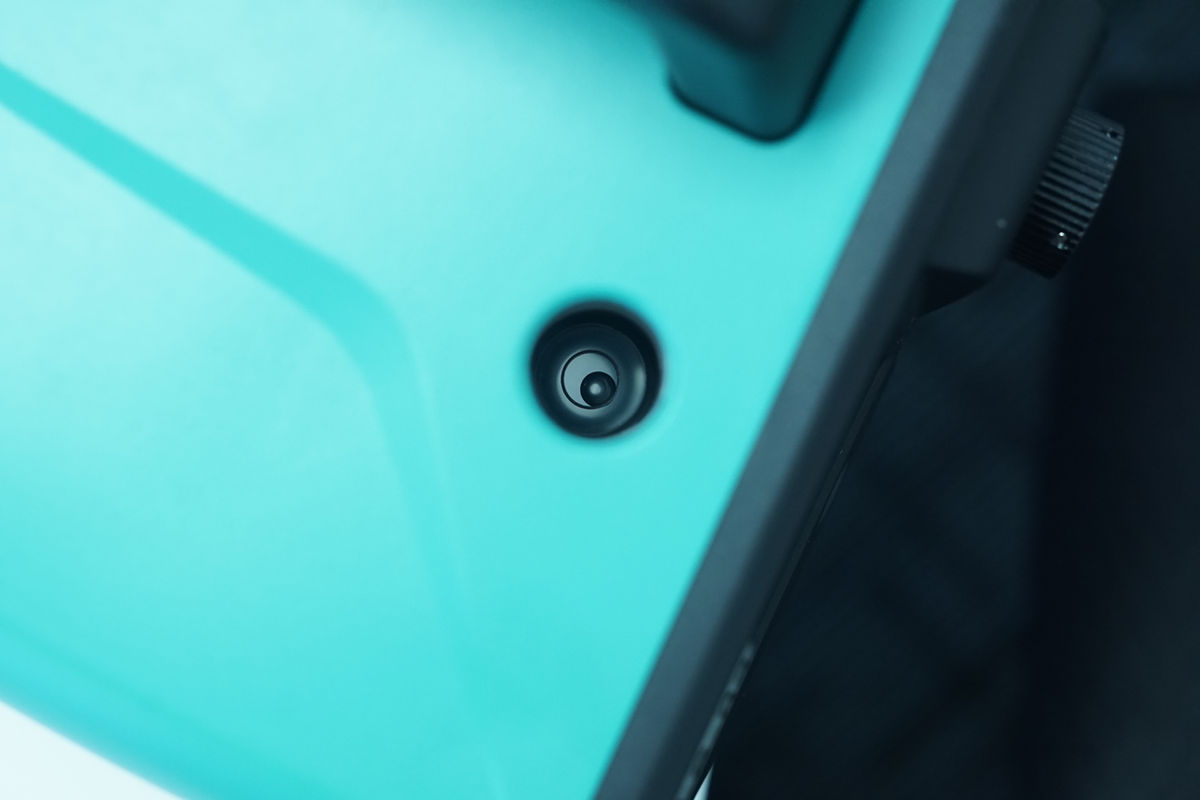

Industrial Design
Bubbles on both the vertical and horizontal sides, and a "shark-fin" handle for easier collimation.

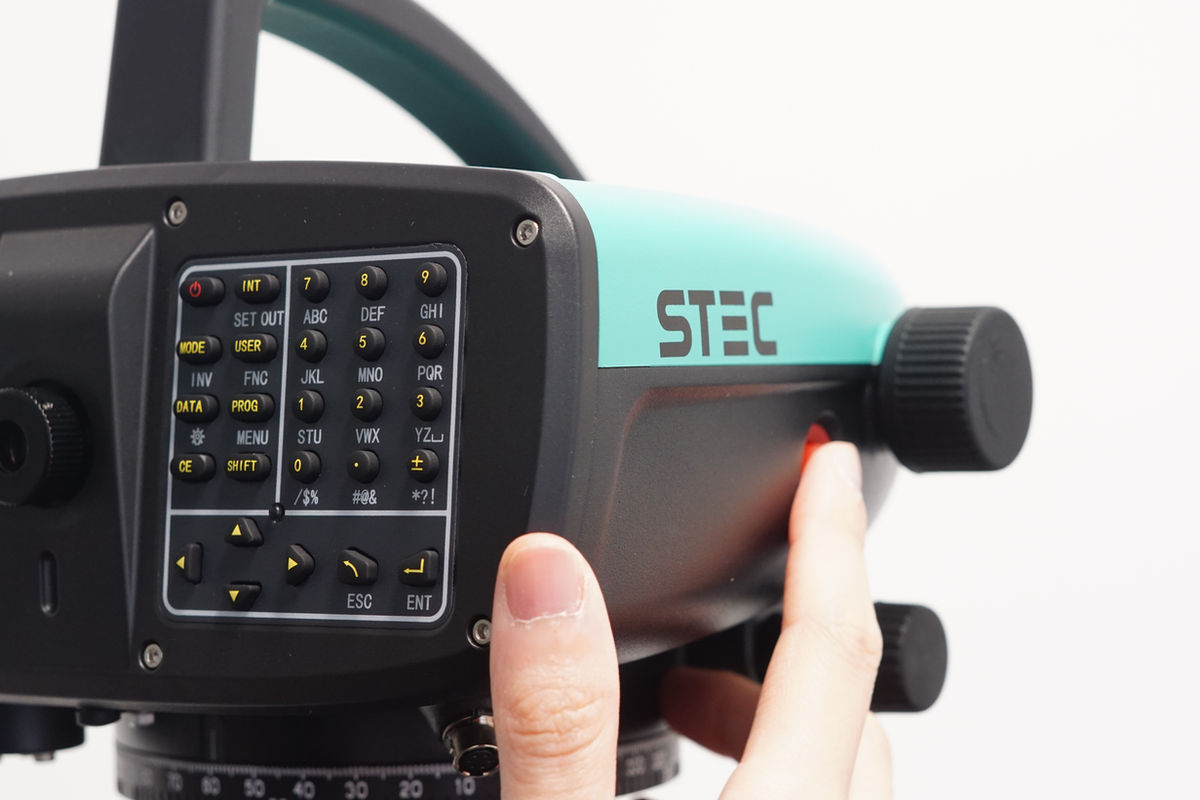

Ergonomic Design
An endless tangent drive for smooth, unlimited rotation and a quick-measure button.

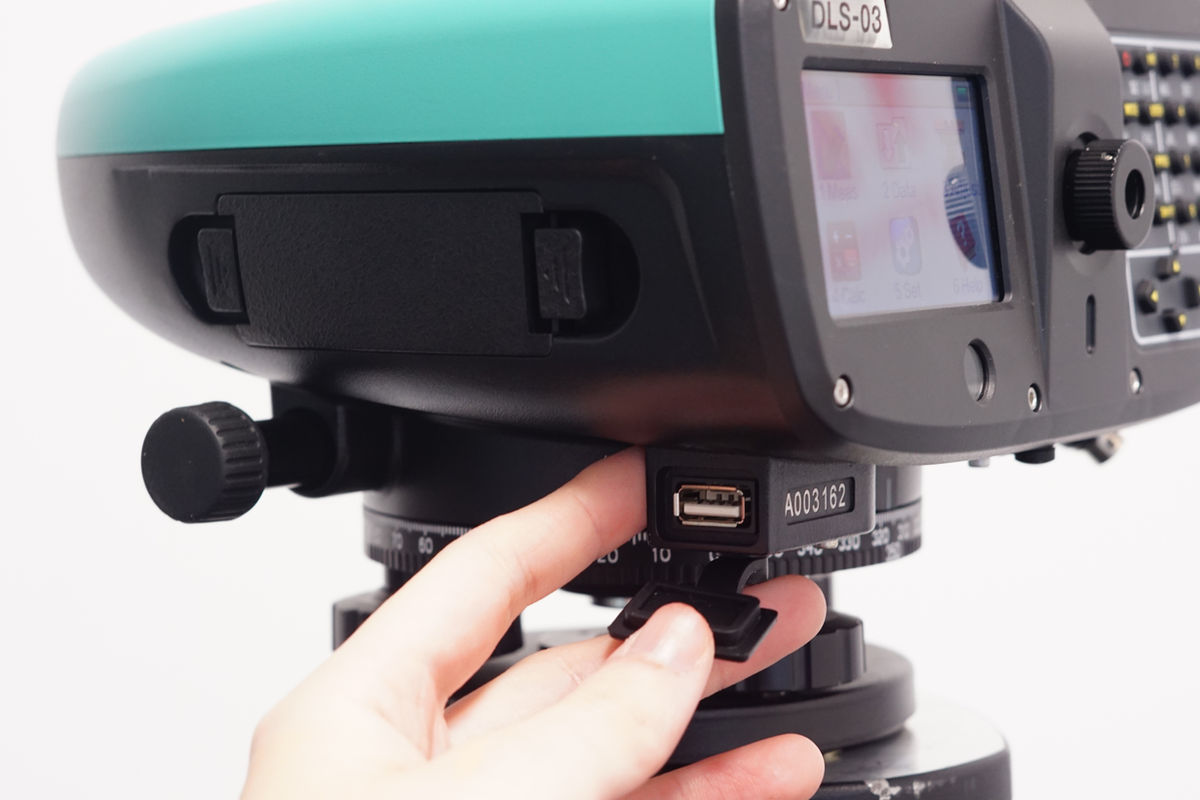

Flexible Data Transfer
USB flash disk and Bluetooth, with RS-232 as an option.
Key Features
- 0.3 mm accuracy with invar staff
- Magnetic damping compensator
- Colour touch screen with quick guide
- Bubbles on both vertical and horizontal sides
- Endless tangent drive and quick-measure button
- USB, Bluetooth, RS-232 (optional) data transfer
Specifications
| Type | Digital Level |
| Height Accuracy | 0.3 mm (invar staff) |
| Distance Range | 110 m |
| Magnification | 32× |
| Compensation Range | 12' |
| Display | Colour touch screen |
| Data Transfer | USB flash disk, Bluetooth, RS-232 (optional) |
Applications
