DLS-07A
Digital level with 0.7mm accuracy, bigger screen, alphanumeric keyboard.
DLS-07A is a digital level with 0.7 mm height accuracy and a 110 m range. A larger 7-line, 160 × 96 pixel display shows more on each page, and a trigger key, bubble reflector and rough-aiming handle speed up work in the field. Its new iconic onboard program supports user-defined levelling standards.
- Height accuracy
- 0.7 mm
- Height accuracy
- Distance range
- 110 m
- Distance range
- Magnification
- 32×
- Magnification
- Compensation range
- 15'
- Compensation range
Main Capabilities

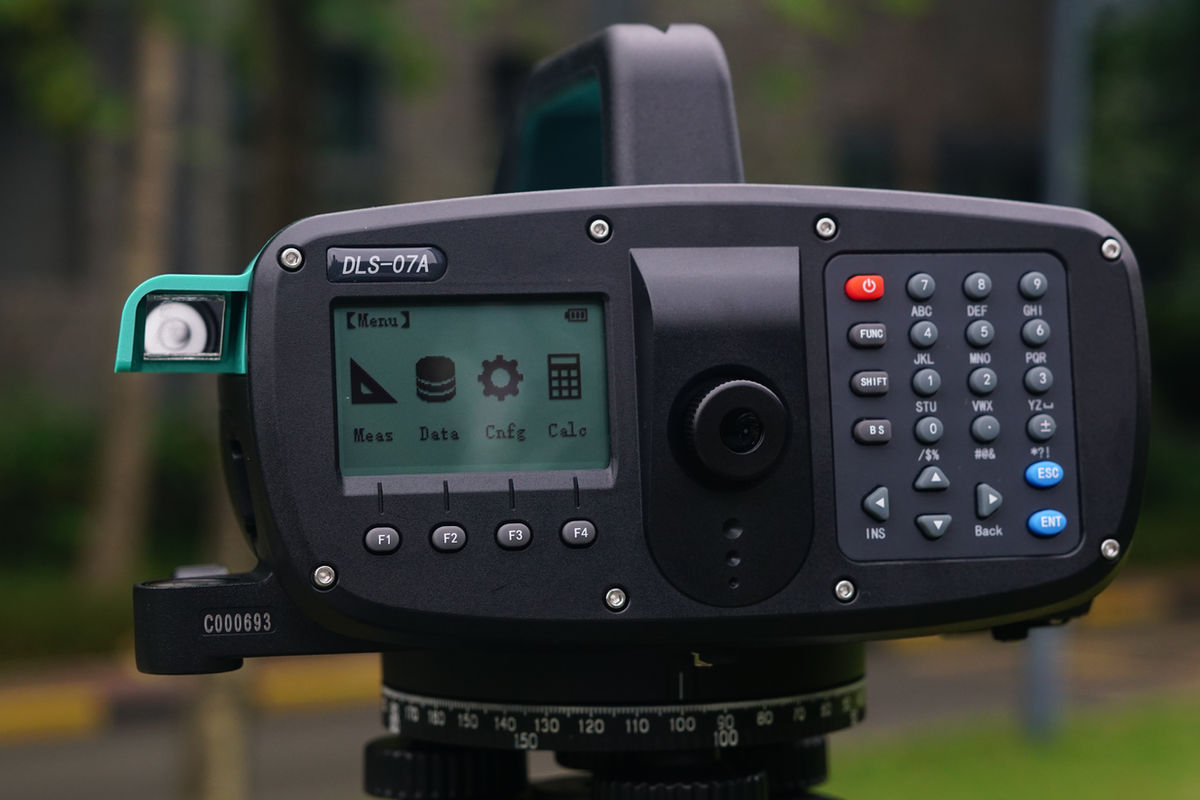

7-Line Display
A larger 160 × 96 pixel screen shows more information on each page.

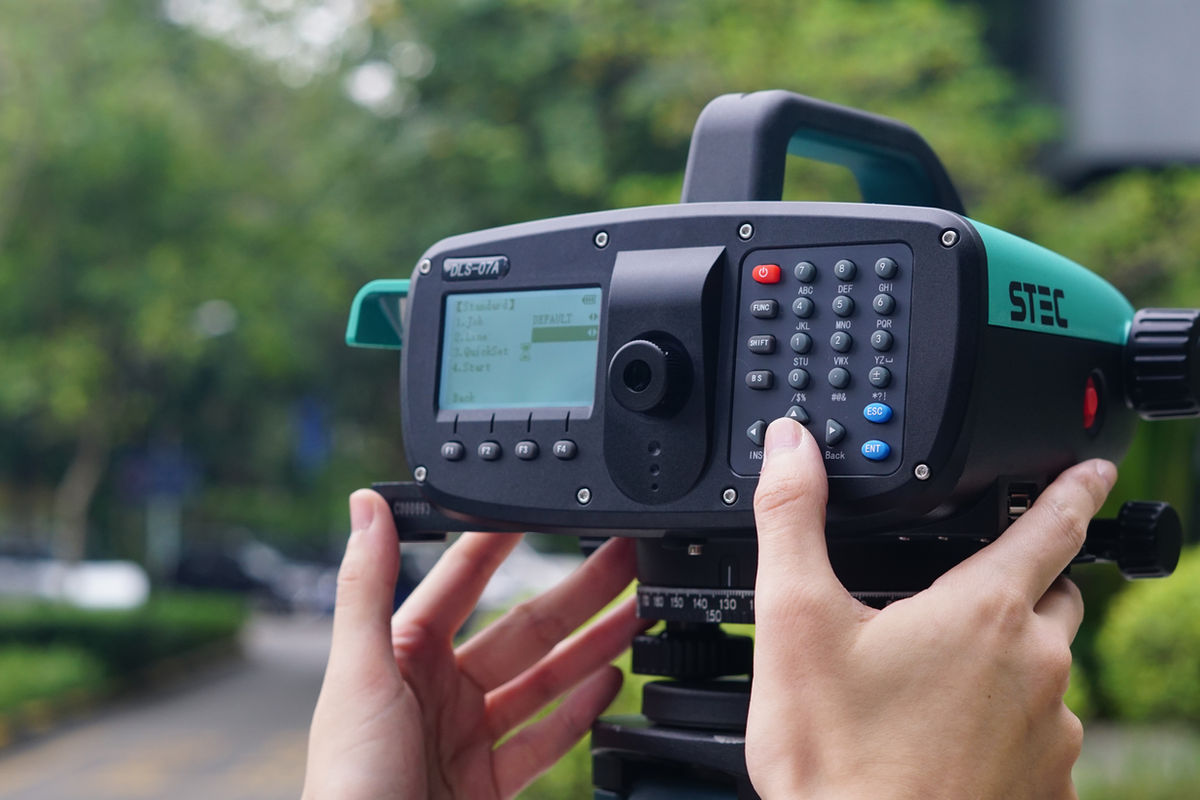

Ergonomic Design
A one-press trigger key, a bubble reflector you can check from different angles, and a rough-aiming handle for quicker targeting.

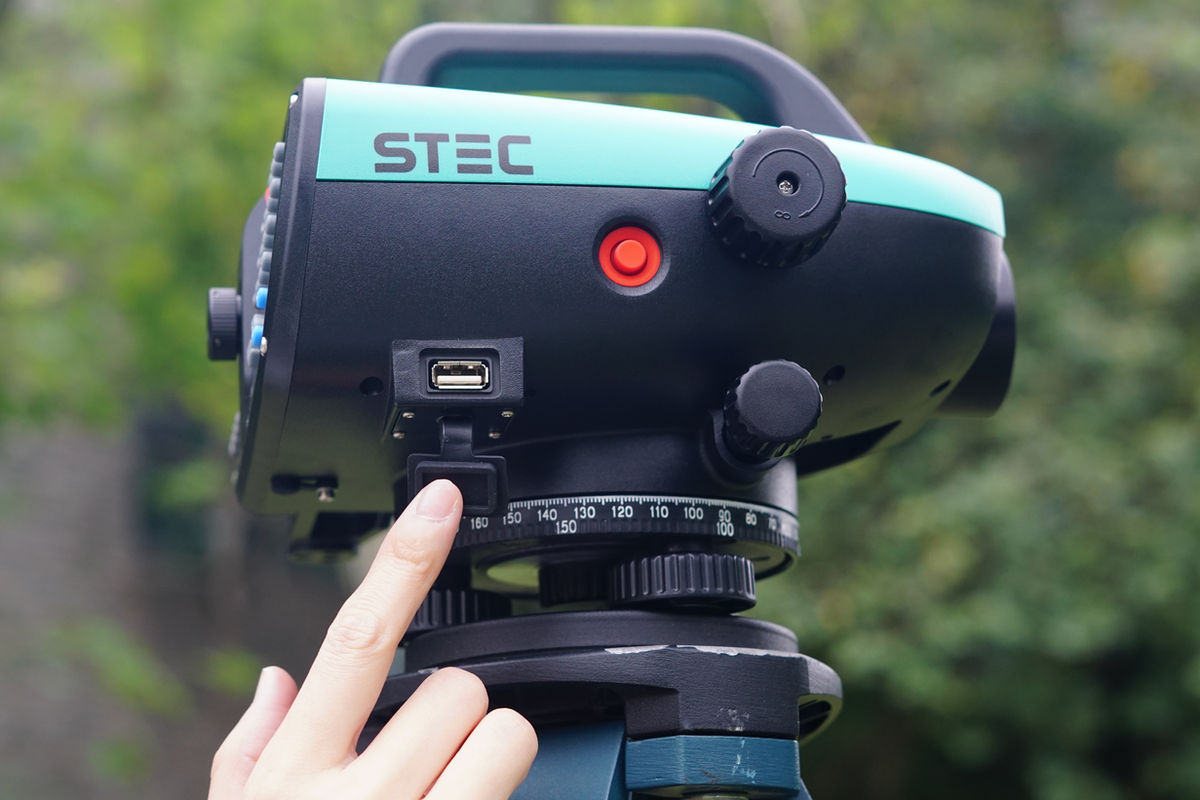

Flexible Data Transfer
USB flash disk, with Bluetooth as an option.
Brand-New Onboard Program
An iconic interface, user-defined levelling standards and versatile programs.
Key Features
- 0.7 mm height accuracy
- 7-line display, 160 × 96 pixels
- Alphanumeric keyboard
- One-press trigger key
- Bubble reflector and rough-aiming handle
- User-defined levelling standards
Specifications
| Type | Digital Level |
| Height Accuracy | 0.7 mm |
| Distance Range | 110 m |
| Magnification | 32× |
| Compensation Range | 15' |
| Display | 7 lines, 160 × 96 pixels |
| Data Transfer | USB flash disk, Bluetooth (optional) |
