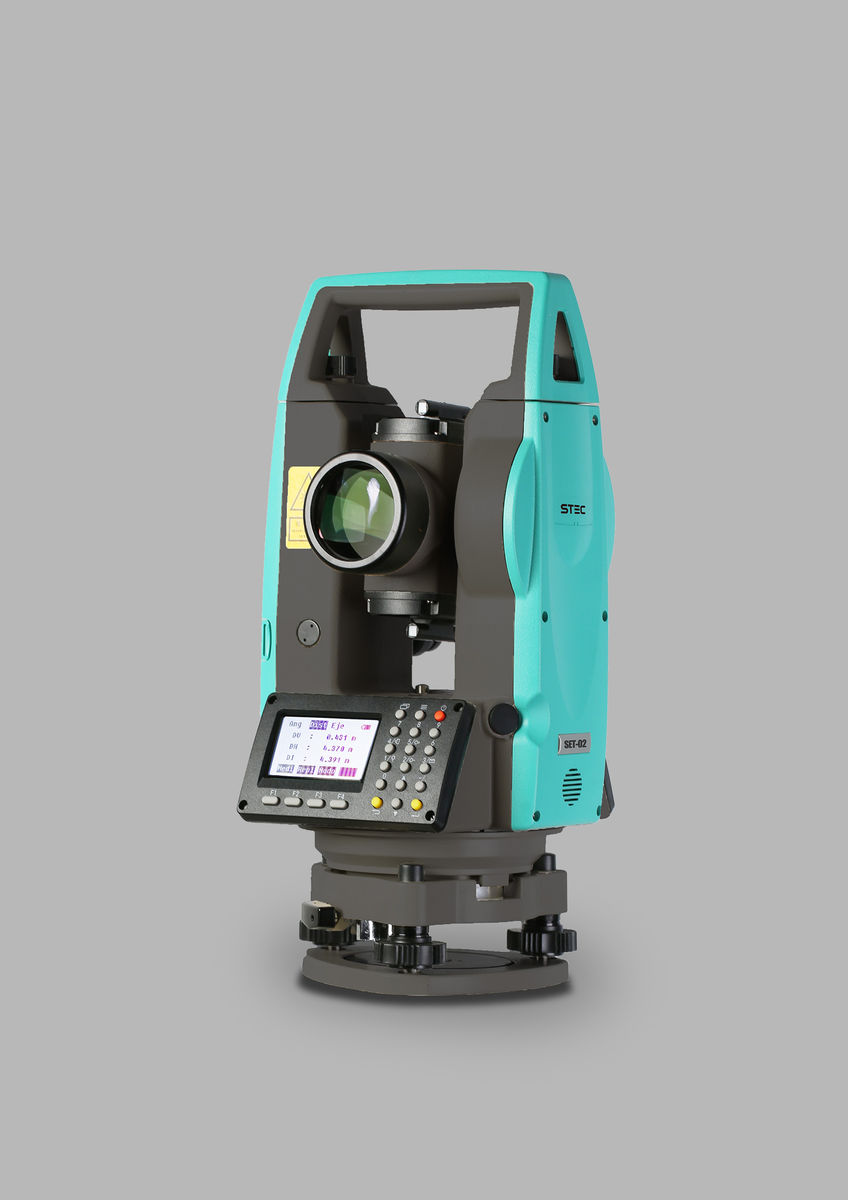

SET-2D
Electronic theodolite with integrated EDM: 2" accuracy and 300 m range with prism.
SET-2D is an electronic theodolite with an integrated EDM. An absolute encoding disk and dual-detection method give stable 2" angle measurement, and the EDM measures up to 300 m with a prism at 3 mm + 2 ppm, returning results within 0.35 s. The onboard program switches between angle measurement, distance measurement and axis stakeout with one press.
- Angle accuracy
- 2"
- Angle accuracy
- Range with prism
- 300 m
- Range with prism
- Distance accuracy
- 3+2 ppm
- Distance accuracy
- Display
- 2.6"
- Display
Main Capabilities
Stable Angle Measurement
2" angle accuracy using an absolute encoding disk and a dual-detection method.

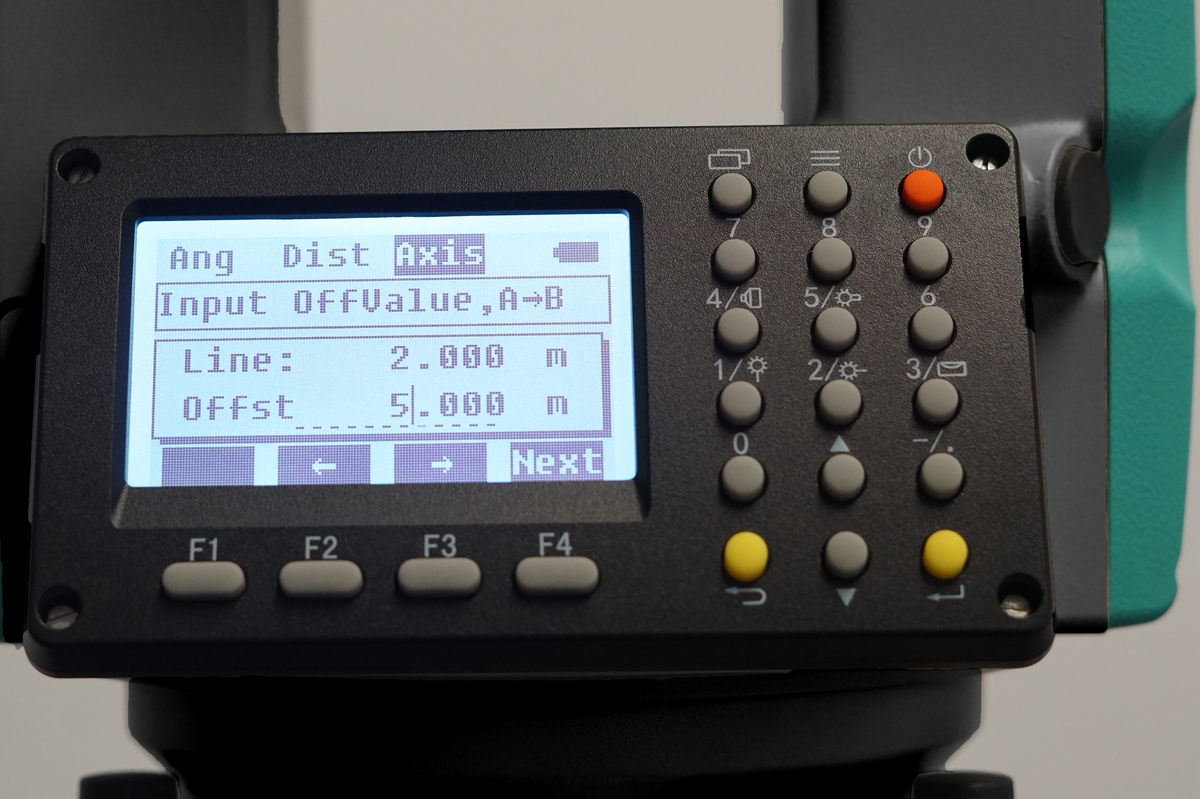

Ergonomic Design
A numeric keypad with shortcuts and an easy-to-read 2.6-inch backlit screen for quick operation.
Unique Distance Measurement
Measures up to 300 m with a prism at 3 mm + 2 ppm, with results in 0.35 s.
Practical Onboard Program
Switch between angle measurement, distance measurement and axis stakeout with one press.
Key Features
- 2" angle accuracy with absolute encoding
- Integrated EDM, 300 m with prism
- Results within 0.35 s
- Angle, distance and axis stakeout programs
- Numeric keypad with shortcuts
- Backlit 2.6-inch display
Specifications
| Type | Electronic Theodolite |
| Angle Accuracy | 2" |
| Angle Measurement | Absolute encoding disk, dual detection |
| Distance Range | 300 m (with prism) |
| Distance Accuracy | 3 mm + 2 ppm |
| Measuring Time | 0.35 s |
| Display | 2.6", backlit |
